Modbus Serial / PROFINET IO Gateway

GT200-PN-RS
909-977-2988
WhatsApp

WhatsApp

+1-909-977-2988

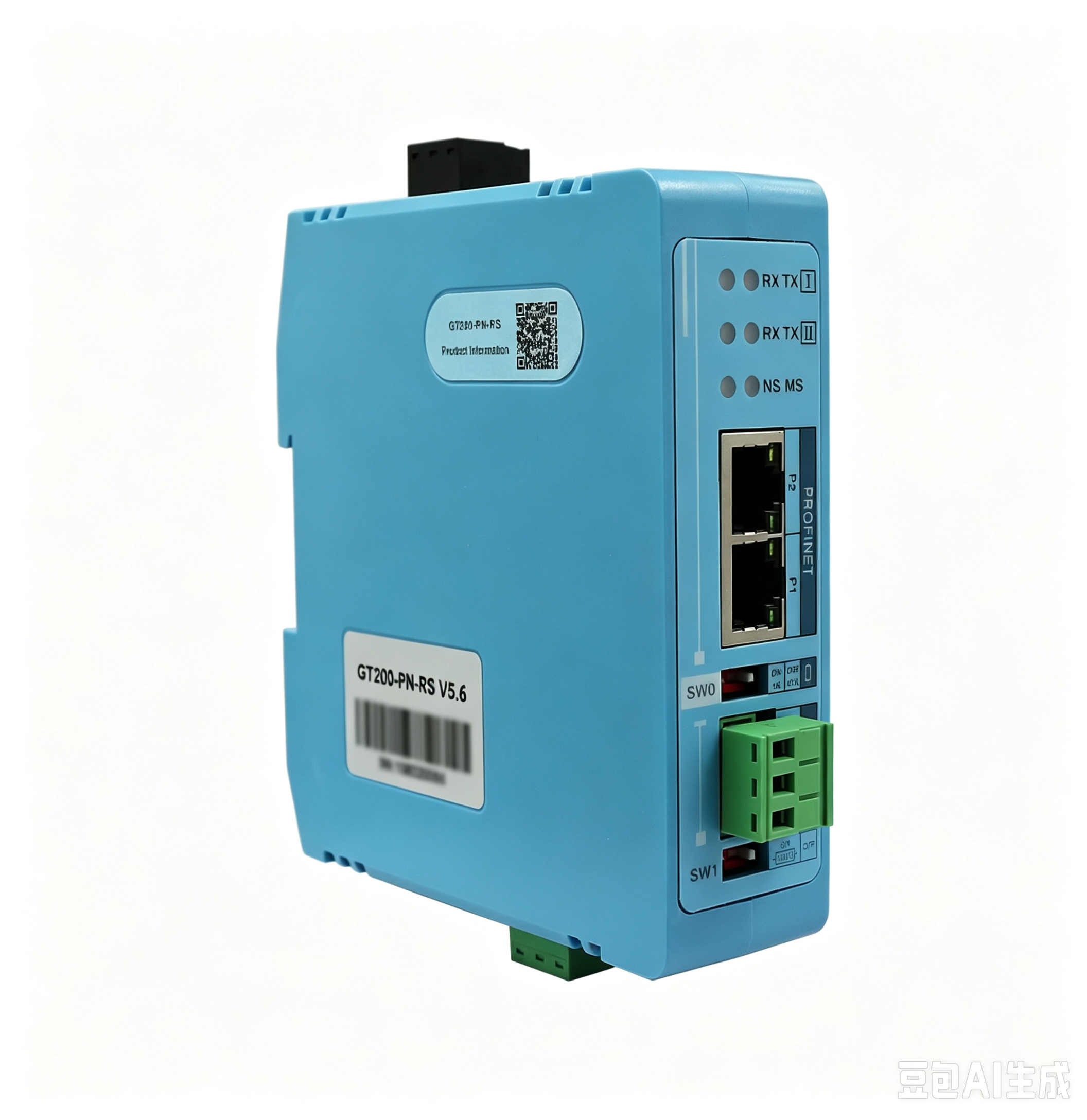

The GT200-PN-RS gateway enables seamless connectivity between Modbus devices and PROFINET networks. It features 2 serial ports to connect up to 4 devices with RS-485 and RS-232 interfaces. The GT200-PN-RS requires no changes to your existing devices, making integration simple and hassle-free.

 Technical Specification:

  • Protocol conversion between PROFINET and Modbus.
  • Supports standard PROFINET I/O RT protocol;
    • PROFINET: supports up to 32 slots, the length of input/output bytes can be set by STEP7;
    • Supported protocol type of serial ports: Modbus protocol and universal serial protocol;
  • Two 10/100M self-adaptive network ports, built-in switch function. Support daisy chain connection and cascade.
  • Two (2) Serial Ports - can be used as communication ports, and they can communicate at the same time.
    • Serial I supports RS-485; Serial II supports RS-232
    • Serial port parameters:
      • Operation mode: half duplex;
      • Baud rate: 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600 and 115200 bps;
      • Data bits: 7, 8;
      • Check bit: none, odd, even, mark and space optional;
      • Stop bits: 1 bit, 2 bits.
  • Modbus master:
    • Function code: 01H, 02H, 03H, 04H, 05H, 06H, 0FH and 10H;
    • Format: RTU and ASCII;
    • Output mode of write command: Cycle, Forbidden and Change of Value;
    • Each master can configure up to 48 Modbus commands;
  • Modbus server:
    • Function code: 03H, 04H, 06H and 10H;
    • Format: RTU and ASCII
  • Built-in electrostatic protection: 15 KV ESD; Communication interface isolation: 3KV;
  • Power supply: 24VDC (11V-30V), 250mA (24VDC).
  • Operating Temp: -4°F to 140°F (-20°C to 60°C); Rel. Humidity: 5%-95% (non-condensing).
  • Dimension (W* H* D): 1.33 in*4.56 in*4.21 in (34mm*116mm*107mm).
  • Mounting: DIN Rail Mounting (35mm).
File Type Time Download

Industrial Ethernet Series
