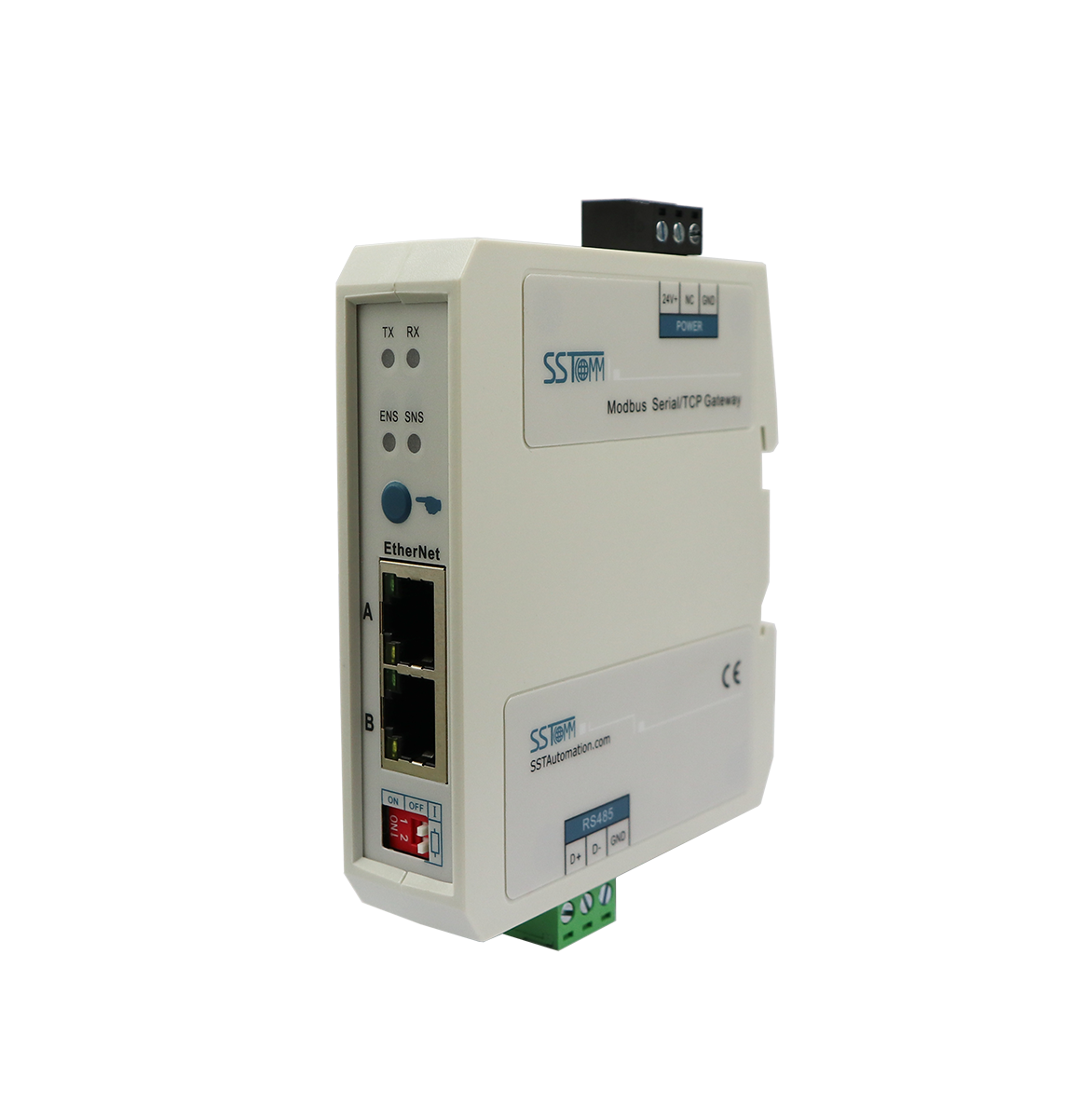

Technical Specifications:

1.   Protocol Conversion

        •  Seamlessly converts between Modbus TCP and Modbus RTU/ASCII.

2.   Modbus TCP Client Connections

        •  Supports up to 16 Modbus TCP Client devices simultaneously.

        •  Handles up to 48 simultaneous Modbus command requests.

3.   Modbus TCP Server Connections

        •  Supports up to 4 Modbus TCP Server devices (Unique IP addresses or Unique Unit IDs).

4.   Serial Communication

        •  Interface: 1x RS485 (half-duplex)

        •  Baud rates: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400bps.

        •  Parity: None, Odd, Even, Mark, Space.

        •  Stop bits: 1 or 2.

5.   Ethernet Ports

        •  Dual 10/100M adaptive Ethernet ports with built-in switch.

        •  Supports daisy-chain and cascading network layouts.

6.   Slave ID Mapping

        •  Built-in Slave ID mapping function for flexible address translation.

7.   Network Security

        •  Configuration IP address whitelist for Modbus clients.

        •  Login password protection for configuration access.

8.  Power Supply

        •  Input: 24VDC (9V to 30V).

        •  Current: 110mA @ 24VDC.

9.   Environmental Conditions

        •  Operating Temperature: -40°F to 185°F (-40°C to 85°C)

        •  Relative Humidity: 5% to 95% RH (non-condensing).

10.  Physical Specificaiton

        •  Dimensions (W × H × D): 1 in × 4 in × 3.5 in (25mm × 100mm × 90mm).

        •  Mounting: 35mm DIN rail.

        •  Enclosure Protection Rating: IP20.

11.  Configuration Software

        •  Includes SST-MT-CFG configuration software for Windows and Ubuntu platforms.
