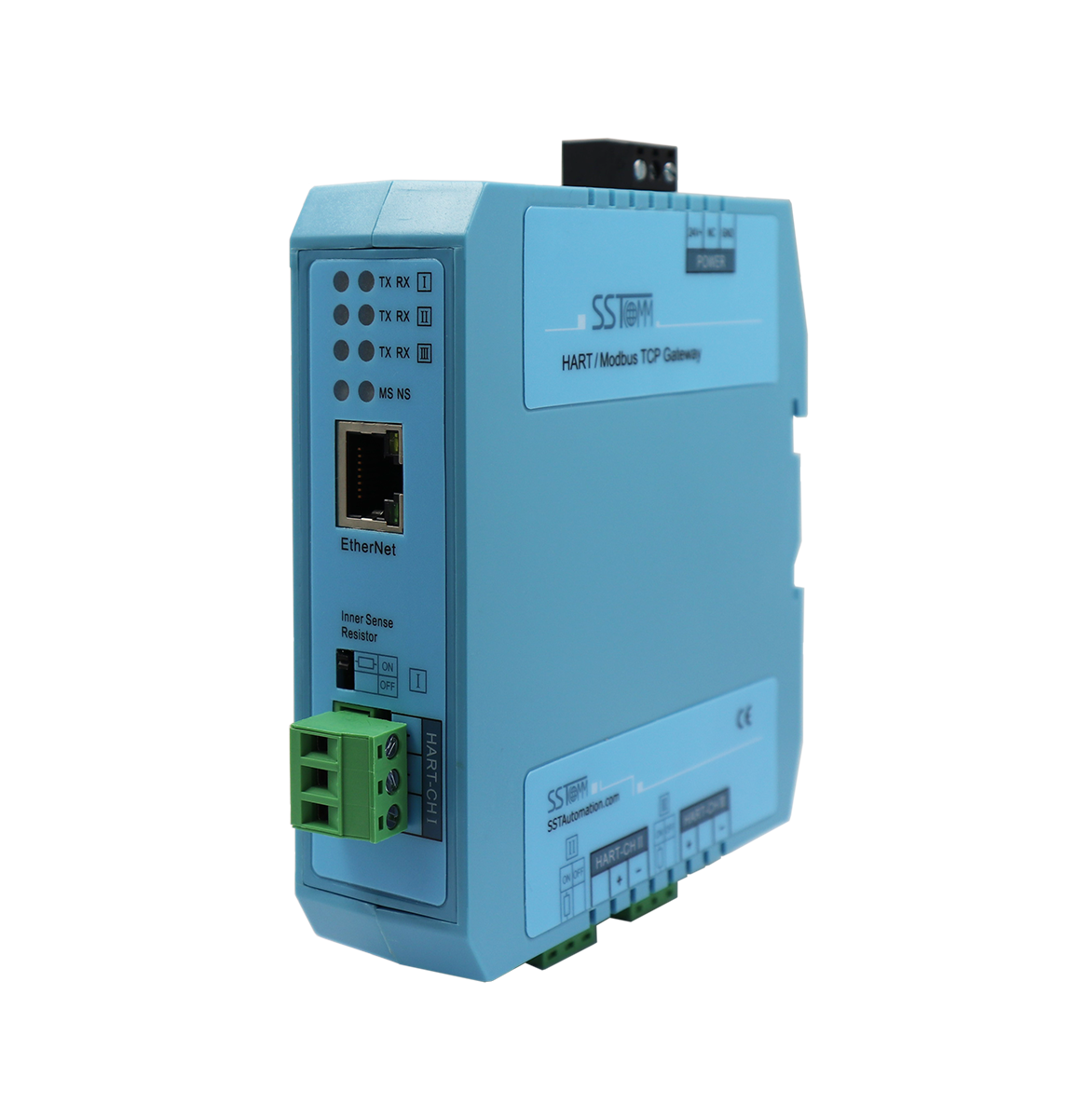

3-channel HART / Modbus TCP Gateway




Our multi-channel HART to Modbus TCP gateway, the GT200-3HT-MT, achieves data communication that easily connects HART instruments to Schneider PLCs.

 Technical Specification:

  • Supports up to 3 HART channels. Each HART channel can be used as a primary or secondary master.
  • Each HART interface supports point-to-point mode and multidrop mode.
    • Point-to-Point mode supports burst communication.
    • Multi-drop mode supports up to 15 HART instruments to be connected. Note: The actual number of connections depends on the field situation.
  • Supports all commands of the HART protocol.
    • Each HART command can be configured to different output mode: change-of-state output, polling output, initialization output or disable output.
    • Each HART channnel supports up to 100 HART commands.
    • Max output data: 2000 bytes; Max input data: 3000 bytes.
  • The Ethernet interface can be used as a Modbus TCP server. Supports for Modbus TCP functions 03H, 04H, 06H, 10H.
  • Supports 36 Modbus TCP connections and up to 512 commands at the same time.
  • Ethernet 10/100M adaptive. Supports IP address conflict detection and automatic routing functions.
  • Power supply: 24VDC(9V~30V), <100mA(24VDC).
  • Operating Temp: -4°F to 140°F (-20°C to 60°C); Rel. Humidity: 5% to 95% (non-condensing).
  • Dimension(W*H*D): 1.6 in*5 in*4.33 in (40mm*125mm*110mm).
  • Installation: 35mm DIN RAIL.
  • Protection Level: IP20.
