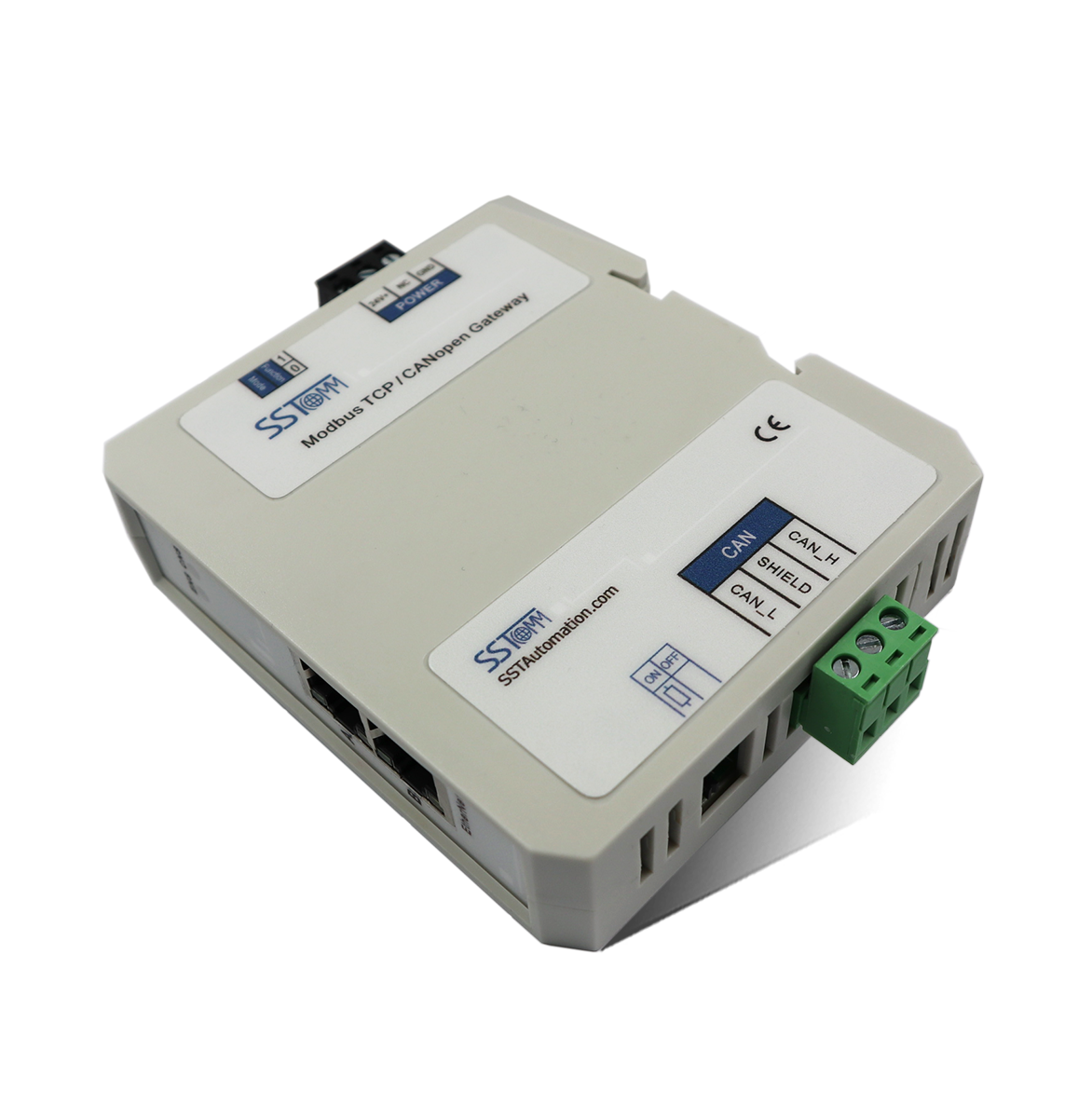

Modbus TCP / CANopen Gateway GT200-MT-CO

Modbus TCP / CANopen Gateway

GT200-MT-CO

909-977-2988

Our CANopen to Modbus TCP gateway can seamlessly connects CANopen devices to the Modbus TCP Network.The gateway acts as a CANopen master and Modbus TCP Server.

Technical Specification
Order Information
Download
Selection Guide
Case Study
Related Products
Warranty & Service

Technical Specification:

CANopen supports one channel CAN 2.0A. CAN baud rate: 10kbit/s, 20kbit/s, 50kbit/s, 100kbit/s, 125kbit/s, 250kbit/s, 500kbit/s, 1Mbps.
CANopen profile DS301 V4.02 and CiA Draft Recommendation 303 compliant.
Acts as a CANopen Master,supports 100 PDO and 100 SDO commands.
CANopen supports node guarding, Heartbeat and NMT functions.
CANopen supports NMT_RESET command configurable function.
Acts as a Modbus TCP server.
- Two 10M/100M adaptive network ports.
- Supports up to 8 Modbus TCP clients.
- Supports function codes: 03,04,06,16.
- Supports maximum input and output 1202 bytes.
Power supply: 24VDC ( 11V-30V),80mA (24VDC).
Operating Temp: -4°F to 140°F ( -20°C to 60°C), Rel. Humidity: 5% -95%, non-condensing.
External dimensions (W*H*D): 1 in*4 in*3.5 in (25mm*100mm*90mm).
